Alien Technologies RFID Tags

  • General Info
  • Documents

The Alien World Tags are designed to operate globally within a narrowly defined performance band from 860 to 960 MHz, which enables each individual tag to be used successfully across the Americas, Europe, Asia and Africa and their unique RFID operating frequencies. Alien World Tags enable companies to manufacture products on one continent and ship them worldwide utilizing a single RFID tag type – with the tag exhibiting uniform behavior and delivering consistent performance globally.

The small factor tags are ideal for demanding applications requiring a small footprint, such as item level tagging. These tags can be incorporated into packaging to leverage metal components within the packaging to extend their read range.

Alien Squiggle

ALN-9540 - "Squiggle™"

  • World Tag: global operation 860 to 960 MHz
  • The EPC Class 1 Gen 2 price/performance benchmark
  • High performance solution for most packaging including products containing metal and water
  • 97mm x 11mm
Alien Squiggle Square

ALN-9529 - "Squiggle®-SQ"

  • Global operation - 860 to 960 MHz
  • Ideal for item level tagging of plastic packaging such as
    pharmaceutical pill bottles and apparel hang tags
  • Near-field and far-field communication modes
  • 23mmx 23m
Alien Squiggle-SH

ALN-9562 - "Squiggle®-SH"

  • World Tag: global operation 860 to 960 MHz
  • Squiggle performance in a smaller tag
  • Form factor ideal for 3 inch labels and hang tags
  • 70mm x 19mm
ALN-9554 - M ALN-9554 - "M"
  • Global operation - 860 to 960 MHz
  • High gain, high performance tag
  • Ideal for plastic totes, pallets & reusable assets
  • 94mm x 42mm
Alein 2 x 2 ALN-9534 - "2x2"
  • Global operation - 860 to 960 MHz
  • Omni-directional tag designed for applications such as airline baggage and apparel
  • Square design enables cost effective conversion for vertical labels
  • 47mm x 42mm
Alien 9640 ALN-9640 - "Squiggle" Inlay
  • World Tag with global operation between 860-960 MHz
  • EPCglobal Class 1 Gen 2(version 1.2.0) compliant
  • ISO-18000-6C compliant
  • Antenna dimensions: 95mm x 8.2mm

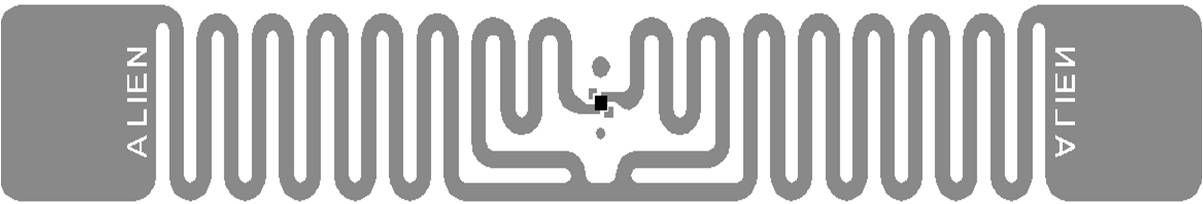

Alien 9630 ALN-9630 - "Squiglette"
  • Exceptional performance
  • EPC Gen 2(v1.2.0) compliant
  • ISO/IEC 18000-6C compliant
  • Worldwide RFID UHF operation (840-960MHz)
  • Higgs-3 IC with 800-bits of Nonvolatile Memory

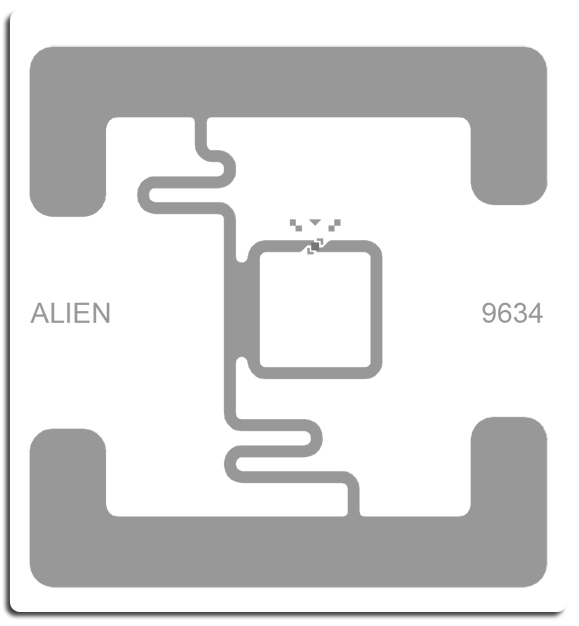

Alien 9634 ALN-9634 - "2x2" Inlay
  • World Tag with global operation between 860 - 960 MHz
  • EPCglobal Class 1 Gen 2(version 1.2.0) compliant
  • ISO-18000-6C compliant
  • Antenna dimensions: 44mm x 46mm

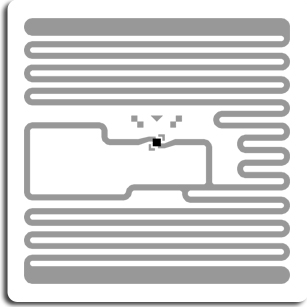

Alien 9629 ALN-9629 - Square Inlay
  • World Tag with global operation between 860 - 960 MHz
  • EPCglobal Class 1 Gen 2(version 1.2.0) compliant
  • ISO-18000-6C compliant
  • Antenna dimensions: 22.5mm x 22.5mm
Alien 9662 ALR-9662 - "Short"
  • World Tag with global operation between 860 - 960 MHz
  • EPCglobal Class 1 Gen 2(version 1.2.0) compliant
  • ISO-18000-6C compliant
  • Antenna dimensions: 70mm x 17mm
Alien 9654 ALR-9662 "G" Inlay
  • World Tag with global operation between 860 - 960 MHz
  • EPCglobal Class 1 Gen 2(version 1.2.0) compliant
  • ISO-18000-6C compliant
  • Antenna dimensions: 93mm x 19mm
