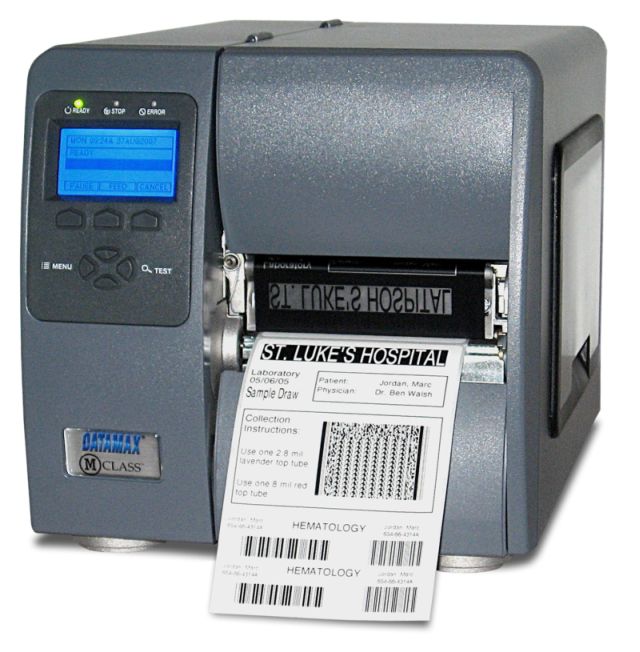

M-Class

Feature-rich printers within a compact modular design, creating a desktop/ light industrial printer at a value price.

Models Include:
M-4206
M-4210
M-4306

M-Class Mark II Specification Brochure

M-4306 Specification Brochure



Description:

The M-Class Mark II is a compact industrial strength printer series that offers the power and performance required in industrial environments, the reliability demanded in commercial applications and a small footprint when space is a consideration. It combines powerful standard features with a variety of flexible options to meet the broadest possible range of applications.

The solid die-cast metal construction, large graphical display and modular design set the M-Class printer family a step above its competitors. The printer’s solid cast metal chassis and durable steel cabinet offer rugged and reliable performance. The easy-to-use graphical display makes navigation through the menus quick and simple for any level user. The modular design offers the flexibility to quickly replace parts in the field or install options to meet changing business requirements.

The M-Class offers the best features and performance in its class.

Features:

• Direct thermal printing of bar codes, text, and graphics on demand and batch printing
• Thin film printhead with IntelliSEAQ™ (Sequential Energy Adjustment for Quality)
• Die-cast aluminum frame
• Datamax Programming Language (DPL)
• 32bit multi-tasking DragonBall® Processor, (M-4206 100Mhz; M-4210 150Mhz)
• 8/16 MB (M-4206/M-4210) RAM memory
• 4/8 MB (M-4206/M-4210)Flash downloadable program memory
• Serial RS-232 port, Parallel, USB
• IEEE 1284 compliant bi-directional parallel port
• Gap, notch and reflective top of form media sensing
• 5 button 128 x 64 LCD Graphical back-lit LCD display
• Configuration settings via front LCD panel menu
• No dipswitches
• Menus in English, French, Italian, German and Spanish
• Configuration label makes set-up easy to understand
• Simple ribbon and media loading
• Clear window in media cover -- easy to view supplies
• Media tear bar
• Fan-fold media handling from bottom or rear of printer
• AGFA font engine with CG Triumvirate™ scalable font
• Datamax printer driver for Windows 98 and above desktop operating systems
• Nine Bit-Mapped Fonts, rotatable 0, 90 180, 270 degrees
• CG-Triumvirate™ scalable Font
• CG Triumvirate™ condensed bold scalable font



W-Class

Wide format printers produce labels up to 8.5 inches wide and withstand the harshest environments.

Models Include:
W-6208
W-6308
W-8306

W-Class Specification Brochure



Description:

The Datamax W-Class Family of printers was designed to address the specialized printing needs of applications where wide label formats are industry-standard requirements. The W-Class product family consists of the DMX-W-6208, the W-6308, and the W-8306. W-Class wide-format label printing products are the most advanced of their kind in the marketplace today. The W-Class features more standard memory, a beefier processor, and the scalability required in today's connected workplace. The W-Class utilizes the acclaimed electronics features of the industry-leading Datamax I-Class product line, including a card cage with the option to add electronics accessories on-site. W-Class printers are constructed to endure the most intense industrial printing environment, with an all-metal chassis and heavy-duty metal exterior designed to protect the value of your technology investment.

Features:

FEATURE	FUNCTION	BENEFIT
Field tested construction, durable metal covers	Metal frame designed for reliability. Metal covers protect printer and media from damage.	Durable construction for tough environments.
Simple loading of media and ribbon	No operators manual required. Easy to follow loading diagram in the inside cover.	No paper path diagram to lose.
Color coded component cues	Components that can be touched, moved or adjusted are green and easily recognizable.	Reduces training time. More intuitive. Novice users are less fearful of printer operations.
Front 5 button 2 line, 20 character LCD display	Configure the printer and change how the printer operates.	All configurations take place via the intuitive front menu. No complicated dipswitches.
Wide access to the printhead	Printhead mechanism is hinged to provide wide-open access.	Easier to load ribbon and media, easier to clean printhead for longer life.
Flash memory	Datamax Printer Language and additional font capability can be upgraded or enhanced without the need for modifications to the printer or electronics.	Easier to remain current. Updates can be made to the printer without the need for replacing EPROMS.
Windows printer driver	Windows applications have the ability to use the W-CLASS as a Windows printer.	End-users can choose which application software to use with the W-CLASS.
Datamax Printer Language	Utilizes the Datamax Printer Language.	Many existing applications support Datamax Printer Language.
Field installable options	Cutter and sensor simply plug into the front of the printer. Memory and connectivity options slide into the card cage located in the back.	Not necessary to disassemble the printer just to add options.
Serial and parallel communications	Industry standard RS-232C and Centronics Parallel ports included for host communication.	Off-the-shelf communications cables can be used to provide printer/host connection.
Dual locking printhead	Printhead latch locks with stainless steel pins on either side of the printhead.	Allows for even printhead pressure across the width of the head.
Clean electronics side	Designed for quality, no belts to wear out, no springs and cables crossing each other.	Printer is designed for reliability and serviceability throughout.
Auto-resetting board fuses	Fuses protect the printer from surges then reset themselves.	No fuses to replace while maintaining the integrity of the electronics.
Split ribbon supply hub	Ribbon supply hub is split, allowing the proper back tension for all sizes of ribbons.	Provides even tension to give smooth, wrinkle free, ribbon operation and prevent ribbon breakage.
Improved fanfold capability	Printhead mechanism is designed to easily accept fanfold media.	Fanfold media feeds through back of printer, works right every time.
1.5" and 3" media cores	Revolving media hubs available in 1.5" and 3" sizes.	Worldwide focus works with all major sizes of media rolls.



I-Class

Industrial printers perform in any application where a rugged high-output printer is mandatory.

I-Class Specification Brochure

Options

Models Include:
I-4208
I-4308
I-4406
I-4212
I-4604

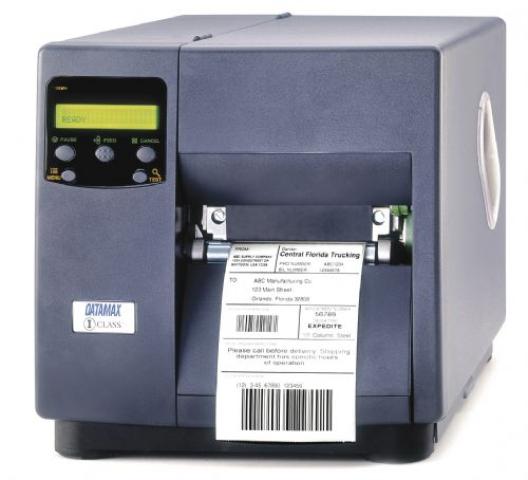

I-4208

It's all about value, performance and speed! From desktop to industrial settings, the DMX-I-4208 offers excellent design characteristics, engineering superiority and unprecedented performance capabilities to meet your printing demands. Built to meet the toughest printing requirements, the DMX-I-4208 incorporates many standard features normally found as options on competitive products.

The DMX-I-4208 features a modular design that enables the operator to add or change an option at any time. The printer can easily be upgraded and reconfigured to meet future opportunities or growing applications. Engineered for quality, the foundation of the printer is a precision-crafted die-cast aluminum frame. This durable, yet lightweight, design increases the printer's longevity and reliability. More ease-of-use features are standard throughout the I-4208 than any other printer in its class including an easy-to-read front LCD display, color-coded operator cues, embossed media loading diagrams, wide access to the printhead, plus a unique collapsible ribbon hub that makes loading and unloading a breeze.

STANDARD FEATURES

• Fast label throughput with a powerful 32-bit processor and an amazing 8MB of addressable RAM, the DMX-I-4208 provides first label throughput at 8 ips - the fastest label in its class;

• Simple to use features can be easily configured through the deluxe LCD front panel display;

• The front LCD features selectable, built-in, international language support for English, French, Italian, German and Spanish. International Language Print Capabilities are available for over 40 international languages;

• Easy to use ribbon and media supply and take up hubs make loading a breeze;

• The I-4208 is built with more standard features that are normally expensive options on competitive model products;

• Flash upgradeable firmware.

ENGINEERED TO PROTECT YOUR INVESTMENT

• Modular design facilities adding and/or changing options with ease.

• Easy to upgrade and reconfigure for business growth.

• Extremely easy to maintain-change the printhead and the platen roller in less than 5 minutes.

• Standard bi-directional parallel and high-speed serial interfaces allow easy integration into your system.

• Optional USB, Ethernet and Twinax/Coax support allows the printer to connect to virtually any host system environment.


The DMX-I-4208 is ideal for desktop and industrial applications and will handle all your general purpose labeling applications such as shipping, receiving, finished goods storage and assembly.

The Datamax I-Class Series has what it takes to solve your barcode printing needs. When it comes to value, performance and speed, there is just one choice—the Datamax I-Class I-4208. It's the industry's answer to your general purpose labeling needs.

I-4308

The DMX-I-4308 printer, engineered with precision-built printer mechanism and state of the art electronics, is perfect for applications requiring very small labels, intricate graphics, or two-dimensional bar codes. The 300 dpi (12 dots/mm) printhead, coupled with the capability to accurately maintain critical print registration, enables the I-4308 to produce labels for applications such as small parts tracking and identification of wiring harnesses. The I-4308 is also an excellent product for generating intricate DataMatrix or PDF-417 bar code labels. The die-cast aluminum frame and metal cover provide a rugged, reliable platform that stands up to the harshest industrial environments.

With print speeds up to 8 inches per second (203mm/sec), the DMX-I-4308 won't keep you waiting for high-resolution labels. A field installable flash/font expansion card allows for storage of label formats, graphics, downloadable fonts and international language print capabilities, thus minimizing formatting download time and maximizing printer output.

STANDARD FEATURES

• A powerful 32-bit multi-tasking processor and an industry leading 16MB of addressable RAM;

• An easy-to-read front LCD display;

• Color coded operator cues;

• Embossed media loading diagrams;

• Easily accessible printhead mechanism;

• A unique collapsible ribbon hub that makes loading and unloading a snap;

• Flash upgradeable firmware.

ENGINEERED TO PROTECT YOUR INVESTMENT

• Modular design facilities adding and/or changing options with ease.

• Easy to upgrade and reconfigure for business growth.

• Extremely easy to maintain-change the printhead and the platen roller in less than 5 minutes.

• Standard bi-directional parallel and high-speed serial interfaces allow easy integration into your system.

• Optional USB, Ethernet and Twinax/Coax support allows the printer to connect to virtually any host system environment.


The DMX-I-4308 is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional bar codes. Other applications the I-4308 can be used for are printed circuit boards serial numbers, product identification and clinical applications.

The Datamax I-Class Series has what it takes to solve your barcode printing needs. When it comes to precise registration, intricate graphics and high performance, there is just one choice—the Datamax I-Class I-4308. It's the industry's answer to your high resolution printing needs.

I-4212

Engineered for high speed, large volume applications, the DMX-I-4212 boasts a print speed up to 12 inches per second (304mm/sec). Not only is this the fastest printer in the Datamax I-Class Series, it also provides the fastest label through put of any like product. By combining high speeds with the I-Class rugged precision crafted die-cast aluminum frame, the I-4212 is the ideal choice for your high volume, mission critical printing applications, either on-demand or in batches.

The I-Class supports a 4.65-inch(118mm) maximum label width making the product ideal for labeling applications in industrial, commercial, business and clinical environments. A field installable flash/font expansion card allows for storage of label formats, graphics, downloadable fonts and international language print capabilities, thus minimizing formatting download time and maximizing printer output.

STANDARD FEATURES

• A powerful 32-bit multi-tasking processor and an industry leading 16MB of addressable RAM;

• An easy-to-read front LCD display;

• Color coded operator cues;

• Embossed media loading diagrams;

• Easily accessible printhead mechanism;

• A unique collapsible ribbon hub that makes loading and unloading a snap;

• Flash upgradeable firmware.

ENGINEERED TO PROTECT YOUR INVESTMENT

• Modular design facilities adding and/or changing options with ease.

• Easy to upgrade and reconfigure for business growth.

• Extremely easy to maintain-change the printhead and the platen roller in less than 5 minutes.

• Standard bi-directional parallel and high-speed serial interfaces allow easy integration into your system.

• Optional USB, Ethernet and Twinax/Coax support allows the printer to connect to virtually any host system environment.

The Datamax I-Class Series has what it takes to solve your barcode printing needs. When it comes to high-speed, large volume, mission critical applications, there is just one choice—the Datamax I-Class I-4212. It's the industry's answer to your high performance printing needs.

I-4406

The DMX-I-4406 printer brings new innovations and standards in price, performance, quality and reliability to high-resolution thermal label printing.

With 16MB of standard memory and a 90 MHz processor, downloading large amounts of intricate information is a breeze. Throughput is the fastest in this class of printer thus making large batch jobs flow quickly. The DMX-I-4406 is built on Datamax's proven I-Class design and is perfect for applications utilizing very small labels with high resolution and intricate graphics, or two-dimensional bar codes including Micro PDF, PDF417, Aztec and Datamatrix. The 406 dpi (16 dots/mm) printhead, coupled with the capability to accurately maintain critical print registration enable this product to produce labels for applications such as small parts tracking, identification of wiring harnesses, pharmaceutical packing and research samples, just to name a few. The die-cast aluminum frame and metal cover provide a rugged, reliable platform that stands up to the harshest industrial environments. The DMX-I-4406 prints a full 4-inch wide label. Field installable flash/font expansion cards serve to minimize download time and maximize printer output by allowing for label format and graphics storage, downloadable fonts and international language print capabilities. The I-4604 printer is the most versatile, high-density, 4" printer in the market.

STANDARD FEATURES

• A powerful 32-bit multi-tasking processor and an industry leading 16MB of addressable RAM;

• An easy-to-read front LCD display;

• Color coded operator cues;

• Embossed media loading diagrams;

• Easily accessible printhead mechanism;

• A unique collapsible ribbon hub that makes loading and unloading a snap;

• Flash upgradeable firmware.

ENGINEERED TO PROTECT YOUR INVESTMENT

• Modular design facilities adding and/or changing options with ease.

• Easy to upgrade and reconfigure for business growth.

• Extremely easy to maintain-change the printhead and the platen roller in less than 5 minutes.

• Standard bi-directional parallel and high-speed serial interfaces allow easy integration into your system.

• Optional USB, Ethernet and Twinax/Coax support allows the printer to connect to virtually any host system environment.


The DMX-I-4406 printer from Datamax is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional bar codes. With a 406 dpi (16 dots/mm) printhead and the ability to accurately maintain print registration, the I-4406 produces small labels for applications such as tracking small parts with high resolution bar code labels, printing high quality graphics for identifying wiring harnesses, cosmetic labels or adding an intricate Datamatrix, Aztec, or PDF-417 bar code label to a package.

When it comes to reliability, ease of use, maintenance, and high performance, there is just one choice—the Datamax I-4406. It's the industry's answer to your high performance, high-resolution printing needs.

I-4604

The DMX-I-4604 printer brings new innovations and standards in price, performance, quality and reliability to high-resolution thermal label printing.

With 16MB of standard memory and a 90 MHz processor, downloading large amounts of intricate information is a breeze. Throughput is the fastest in this class of printer thus making large batch jobs flow quickly. The DMX-I-4604 is built on Datamax's proven I-Class design and is perfect for applications utilizing very small labels with high resolution and intricate graphics, or two-dimensional bar codes including Micro PDF, PDF417, Aztec and Datamatrix. The 600 dpi (24 dots/mm) printheads, coupled with the capability to accurately maintain critical print registration enable these products to produce labels for applications such as small parts tracking, identification of wiring harnesses, pharmaceutical packing and research samples, just to name a few. The die-cast aluminum frame and metal cover provide a rugged, reliable platform that stands up to the harshest industrial environments. The DMX-I-4604 prints a full 4-inch wide label. Field installable flash/font expansion cards serve to minimize download time and maximize printer output by allowing for label format and graphics storage, downloadable fonts and international language print capabilities. The I-4604 printer is the most versatile, high-density, 4" printer in the market.

STANDARD FEATURES

• A powerful 32-bit multi-tasking processor and an industry leading 16MB of addressable RAM;

• An easy-to-read front LCD display;

• Color coded operator cues;

• Embossed media loading diagrams;

• Easily accessible printhead mechanism;

• A unique collapsible ribbon hub that makes loading and unloading a snap;

• Flash upgradeable firmware.

ENGINEERED TO PROTECT YOUR INVESTMENT

• Modular design facilities adding and/or changing options with ease.

• Easy to upgrade and reconfigure for business growth.

• Extremely easy to maintain-change the printhead and the platen roller in less than 5 minutes.

• Standard bi-directional parallel and high-speed serial interfaces allow easy integration into your system.

• Optional USB, Ethernet and Twinax/Coax support allows the printer to connect to virtually any host system environment.


The DMX-I-4604 printer from Datamax is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional bar codes. With a 600 (24 dots/mm) printhead and the ability to accurately maintain print registration, the I-4604 produces small labels for applications such as tracking small parts with high resolution bar code labels, printing high quality graphics for identifying wiring harnesses, cosmetic labels or adding an intricate Datamatrix, Aztec, or PDF-417 bar code label to a package.

When it comes to reliability, ease of use, maintenance, and high performance, there is just one choice—the Datamax I-4604. It's the industry's answer to your high performance, high-resolution printing needs.





I-Class Options

Cutter, Light-Duty (Backing-Only)

A rotary-type mechanism to automatically cut material with a maximum thickness of .005" (.127 mm) into minimum lengths of 1.25 inches (31.8 mm). An adjustable tray to collect up to 200 cut labels and tags is also available.

Cutter, Standard Duty

A rotary-type mechanism to automatically cut material with a maximum thickness of .010" (.254 mm) into minimum lengths of 1.25 inches (31.8 mm). An adjustable tray to collect up to 200 cut labels and tags is also available.

DMXNet

The DMXNet Print Server Card is an internal Network Interface Controller (NIC) that enables the printer to provide EthernetÒ connectivity. Features include:

• Automatic selection of 10Base2 (Thinnet) or 100BaseT Fast Ethernet connection.
• Integral HTTP Server to allow monitoring and management from a standard Web browser program.
• Peer-to-Peer (serverless) discovery and printing from Windows 95/98/ME/XP or Windows NT/2000 workstations without a Novell file server present.
• FTP printing to allow printing directly from a Web browser or other FTP client.
• Dynamic Domain Name Service (DDNS).
• Lightweight Directory Access Protocol (LDAP).
• Novell "YES" certified.
• Novell NetWare PSERVER on both bindery based and Novell Directory Services (NDS).
• LPR/LPD over TCP/IP for UNIX platforms and Microsoft Windows.
• Raw sockets support over selectable TCP/IP port with filters for selected UNIX environment.
• IP and IPX SNMP support of MIB-2, proprietary NIC MIB and public and proprietary (private) Printer MIB.
• SNMP traps to alert administrators of printer errors (paper/ribbon out, head up, etc).
• E-mail notification of printer errors to specified addresses.
• Universal Plug and Play (UPnP).
• FTP download allows users to upgrade the interface's Flash memory.

External Media Rewinder (specify voltage requirement when ordering)

A precision-crafted, bi-directional rewinding mechanism with device-dependant features:

• DMXREW1 - accommodates 1 to 4-inch (25 to 101 mm) diameter cores; accepts a maximum label width of 4.5 inches (114 mm); and, rewinds to a 8-inch (203 mm) maximum outer diameter at 10 inches per second.
• DMXREW2 - accommodates 3-inch (76 mm) diameter cores; accepts a maximum label width of 9.5 inches (241 mm); and, rewinds to a 12-inch (304 mm) maximum outer diameter at 30 inches per second.

Font Expansion Card (cannot be used with the I/O Expansion card)

A slide-in circuit card assembly with 8MB Flash memory expansion for International Language Printing Capability (ILPC) and/or additional fonts and graphics. ILPC consists of one of the following:

• CG-Times (Western European) Scalable font
• Kanji Gothic B Scalable font
• Simplified Chinese GB Scalable font
• Korean Hangul Scalable font

ILPC - CG Times Firmware

The firmware can be upgraded to include the Datamax ILPC (International Language Printing Capability) CG Timesä font. This supports the Datamax Enhanced Language Code Pages.

Internal Rewinder

An internal mechanism to wind six-inch outer diameter rolls of printed labels, or the label backing material for the Peel and Present option.

I/O Expansion Card (specify features at time of order)

The standard features of this slide-in circuit card assembly include:

• General purpose (GPIO) interface for external printer and device control.
• Time and date calendar (Real Time Clock) function for label time-stamping.

An optional feature also offers:
• 8MB Flash memory expansion for graphics and/or additional fonts including International Language Printing Capability (ILPC).

Peel and Present Mechanism (requires the Internal Rewind option)

An output control device that automatically separates printed labels from the backing material and allows subsequent printing to occur only after the removal of a previously printed label. Minimum label length is 1.5 inches (38 mm).

Present Sensor

An output control device that allows subsequent printing to occur only after the removal of a previously printed label.

RS-422 Serial Interface**

Single-drop interface hardware to support greater distances from the host at communication rates of up to 38,400 baud.

Thermal Transfer (specify configuration at time of order)

A printing method that uses ribbon to produce exceptional image clarity, as compared to most direct thermal media types. This option must be specified for use with either "coated side in" ribbon or "coated side out" ribbon.

Twinax/Coax Interface

A slide-in circuit card assembly that provides connectivity to AS/400 and System/3X Twinax host system or 3270-type host system. Cable included.

USB Port

A slide-in circuit card that provides the printer with a Universal Serial Bus, Version 1.1, for Windows printing environments only.


**Item unavailable for the I-4208.

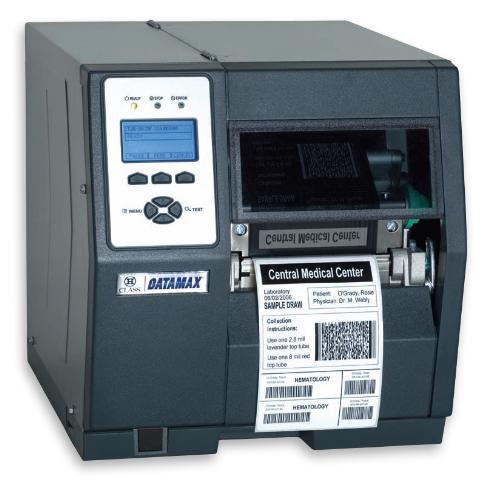

H-Class
The H-Class, providing outstanding performance, sound durability,
and accurate print quality.
Models Include:
H-4212 • H-4310 • H-4408 • H-4606
H-6210 • H-6308 • H-4212X • H-4310X
H-4606X • H-6212X • H-6310X • H-8308X

H-Class Specification Brochure

Features

Options

The Datamax H-Class family is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. H-Class printers provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. H-Class printers offer the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. In addition, H-Class printers are designed with options to address evolving RFID applications. The Datamax H-Class…why consider anything else?

• Powered with one of the industries fastest processors, this high-speed 32 bit/200 MHz multi-tasking processor increases data through put and processing at amazing speeds making label printing one of the fastest in the industries



• The new 240 x 320 graphical LCD display is the largest display available, giving users optimum viewing of both the standard and advanced menu selections.



• The new heavy-duty 8” internal rewind ("X" models only) is a direct powered rewinder offering one of the most powerful methods of rewinding a complete 8” roll of backing and labels.

H-Class Features

Mechanical Features

Direct-Thermal printing
Easy loading
Media Tear Bar
Three-inch Media Hub
Fan-fold media handling (bottom and rear)
Die Cast Media Supply Hub
RFID Upgradeable

Electrical Features

IntelliSEAQ™ Printhead
8 FLASH Memory (MB)
16 DRAM Memory (MB)
Serial RS-232/422 Interface
IEEE 1284 Compliant Parallel Interface
USB (device) Interface, Version 2.0
USB Host Ports (2) (internal remote) ("X" models)
SDIO Interface (internal remote) ("X" models)
Ethernet LAN
Graphics Display with back light (240X320) ("X" models)
Graphics Display with back light (128X64) (standard models)

Software Features

On-demand and batch mode printing
EFIGS (English, French, Italian, German and Spanish) LCD languages
Scalable font engine with two font typefaces.
Time and Date battery back up
Host Computer accessible RAM and Flash memory for object temporary storage
Fault handling with reprint or void selection
Internal test labels for printhead verification, and print quality validation
Internal Configuration Label
Text, bar code, graphic, and image printing capabilities
Factory default configuration restorable
Resident multiple setup store and restore capability
Time stamp at print capability
Label retract control after print
Ribbon low detection and warning
Power-up diagnostics
Resident option hardware diagnostics
Diagnostic display and modes
Media counters
Front panel security
Input line mode (ASCII text input) capability
Option hardware auto detection
Scalable font, dynamic font attributes, bold and italics
Downloadable firmware upgrades

H-Class Options

Thermal Transfer

A printing method that uses ribbon to produce exceptional image clarity, as compared to most direct thermal media types. The 4 section split-hub design allows for lower torque on narrow ribbons. This option can be used with either ‘coated side in’ ribbons or ‘coated side out’ ribbons.

40mm Media Hub

A rotating media hub that will accommodate 40mm media cores.

Standard Peel & Present

A simple "plate" style design that automatically separates most printed labels from the backing material and allows subsequent printing to occur only after the removal of a previously printed label. Minimum label length is 1.5 inches (38 mm).

Heavy Duty Peel & Present

(4" models only)
An internally "overdriven" design that auto-matically separates printed labels from the backing material and allows subsequent printing to occur only after the removal of a previously printed label. Minimum label length is 1.5 inches (38 mm).

Cutter

Plug and Play. Attach the option and it is auto detected during power up. The cutter is a rotary type mechanism capable of cutting media from .0025" to .0100" (.0635mm - .254mm) thick, and the cutter life is designed to exceed 500,000 cuts.

Self-Powered Internal Rewind

("X" models only)
A heavy-duty 8" label rewind option using a dedicated DC motor to tightly rewind a full 8" roll of labels and backing onto a 3" diameter core.

Internal Rewind

(standard models only)
A heavy-duty label rewind option to tightly rewind a 5.5" roll of labels and backing onto a 3" diameter core.

Present Sensor

An output control device that allows subsequent printing to occur only after the removal of a previously printed label.

Barcode Linear Scanner

Factory installed. This new design provides 100% check on every barcode label. If unreadable it will automatically void the labels containing failed bar codes. Supports picket style bar codes.

MCL

A MCL-enabled Datamax printer becomes an intelligent printer with the ability to accept input from devices such as scanners, scales, keyboards, or other peripherals. The printer-resident MCL application can then process received data and performs any number of resulting functions.

RFID-Ready Printer

Factory installed antenna and wiring, for use with future RFID module purchase.

RFID-Ready Upgrade Kit

UHF RFID Upgrade Kit for use with RFID Ready printers. The kit contains a multi-protocol; EPCglobal and Gen2 compatible, w/power RFID module.

RFID-Built

The RFID option demonstrates the flexibility and protection against obsolescence provided by the modular design of Datamax H-Class printers. Based on "from the ground up" design, the RFID antenna is located inside the paper path to give a more precise read.

ILPC Fonts

An expandable international language font to support broader printing needs.
> CG-Times (western European) Scalable font
> Kanji Gothic B Scalable font
> Simplified Chinese GB Scalable font
> Korean Hangul font

DMXWare XML

XML parsing to accommodate ERP and RFID label requirements from companies including SAP and Oracle.

Large Display Upgrade

(standard models only)
Upgrades the standard short model display to the larger 320x240 display that is standard on tall models.

SDIO/USB Host Interface Upgrade

(standard models only)
Upgrades the standard short model with SDIO/USB Host interface that is standard on tall models.



E-Class
Entry level printers perform in a wide range of environments from office and retail to light industrial locations.
Models Include:

E-4203
E-4204
E-4304

Features
Options





























E-Class Options

Thermal Transfer

Thermal transfer printing requires the use of a ribbon. The ink/wax from the ribbon transfers to the media by the printer to create an image. Thermal transfer printing provides exceptional clarity and scanability.

External Cutter

The external cutter provides ease of automatic cutting for tags and labels after a label is printed. This feature attaches to the front of the printer.

Present Sensor

The present sensor allows the printer to be configured for "one up" printing. With the sensor installed, the printer will not print the next label until the previous printed label has been removed from the printer.

FLASH Memory Expansion

FLASH Expansion cartridges are used for permanent storage of custom fonts, formats and graphics. The FLASH memory cartridges cannot be used in conjunction with the ILPC option

External Media Supply Stand

The external media supply option allows the use of large media supply rolls, up to 8-inches in diameter, on 1" to 3" cores.

ILPC

International Print Capability consisting of one of the following:

• CG-Times (western European) Scalable font
• Kanji Gothic B Scalable font
• Simplified Chinese GB Scalable font

External Battery Pack

An external battery pack option is available to power the printer in areas where an AC receptacle is not available such as warehouses, shipping docks, vehicles, or mobile print stations. The battery pack option will allow the printer to operate up to 10 hours on a single charge.







A-Class | H-Class | M-Class Mark II RFID Specification Brochure Datamax – has taken the concept of RFID and smart labels and made it so user friendly, so dynamic and so robust that a revolution has been created in the smart label printing industry! The Datamax Engineering Team used their long history of innovation in printer design and channeled this experience toward designing a new smart label printer. This printer can encode data onto Radio Frequency (RF) chips embedded into a label – also known as a smart label – creating a powerful Radio Frequency Identification (RFID) label printer that is as easy for users to own and operate as other Datamax printers. The astonishing result of this activity is a collection of printers designed to ease users into RFID label printing applications while minimizing risk. RFID-UHF Printers Datamax offers printers that support the UHF band; the A-Class print engine for printer applicator integration, the H-Class and the new M-Class Mark II. These printers are ideal for achieving compliance with mandates from large retailers and purchasing organizations, as well as economical enough for those users developing closed loop applications to streamline internal processes. All Datamax RFID-UHF printers support EPCglobal and ISO standards for Ultra High Frequency (UHF) applications including Gen2. The robust multi-protocol RFID tag encoder in these printers is capable of performing multiple procedures, including writing data to RFID tags, querying the tags unique identification number, and auto calibration of the tag to ensure no valuable RFID smart labels are wasted. RFID-HF Printers For those users that need to encode High Frequency 13.56 MHz smart label tags to fulfill their printing and RFID encoding requirements, Datamax offers a choice of printers. These include the M-Class Mark II, H-Class, and I-Class. These RFID printers support the ISO 15693 standard at 13.56 MHz. Like the UHF models, the HF model is capable of performing multiple procedures, including writing data to RFID tags, querying the tags unique identification number, and auto calibration of the tag to ensure no valuable RFID smart labels are wasted. For more information on Datamax RFID products please access the white paper through the link below, or contact Datamax directly.
