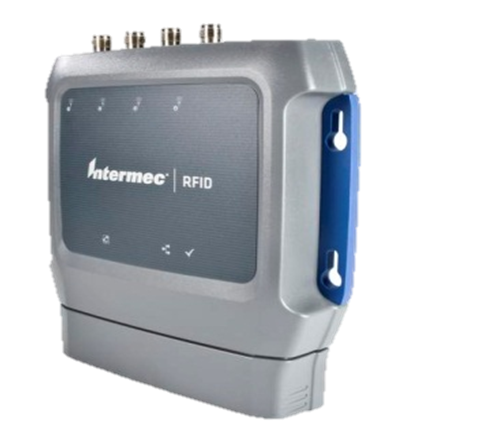

The Intermec IF2 Network Reader
The Intermec IF2 Network Reader
The Intermec IF2 is a compact, cost-effective network reader designed to support diverse RFID applications in both enterprise and industrial environments that require a scalable RFID system with a low cost per read point. The IF2 supports Power over Ethernet, four mono- or bi-static RF ports, built-in powered general purpose input output(GPIO) control, and both standards-based LLRP and Intermec's easy to use Basic Reader Interface(BRI) application interfaces, enabling scalable low-cost deployments for improved return on investment(ROI). The IF2 is packaged in a durable enclosure for nearly any environment and is factory configured to operate in regions across the globe.

The IF2 is based on an Intermec-designed radio frequency (RF) platform that offers best-in-class read performance and includes support for Intermec's exclusive Advanced RFID Extensions (ARX), helping customers achieve a new level of visibility to the identification of RFID tags for greater accuracy of reading tags of interest over readers utilizing less-versatile commodity chipsets. Packaged in a small and lightweight, yet durable enclosure, the IF2 is suited for nearly any environment, including industrial warehouse and manufacturing operations and enterprise environments for asset and inventory management applications.

Features & Benefits

  • Advanced performance in a compact and cost-effective design
  • Easily deployed and managed on common networks
  • Low cost per read point for superior ROI
  • Choice of Power over Ethernet lowers cost of installation
  • Directly monitors and controls peripherals without extra equipment
  • Factory configurable to operate in world regions



Intermec IF2 Specs

  • Accessories
    • Optional 100/240 VAC power converter, power cable, antennas, antenna cables
  • Environment
    • Operating Temp: -20°C to +50°C (-4°F to +122°F)
    • Storage Temp: -30°C to +70°C (-22° F to +158°F)
      Humidity: 5% to 95% (Non-condescending)
  • Frequency Range
    • FCC (902-928 MHz) and ETSI (865-868 MHz), factory configured
    • Enclosure: IP53 sealing Die cast magnesium base, Lexan plastic cover
  • Physical Characteristics
    • Height: 4.32 cm (1.70 in)
    • Length: 18.85 cm(7.42 in)
    • Length: w/ Splashguard: 19.9 cm(7.87 in)
    • Width: 16.31 cm(6.42 in)
    • Weight: 1.0 kg (2.2 lbs)
  • Certifications
    • FCC, ETSI, and other regional RF regulatory certifications (configuration dependent)
  • Air Interface Protocols
    • EPCglobal UHF Class 1 Gen 2, ISO 18000-6C, ISO 18000-6B
  • Physical Characteristics
    • Dimensions with Standard Battery Pack: 6.3 x 3.2 x 1.1 in, (160 x 81 x 28 mm)
    • Dimensions with Extended Battery Pack: 6.3 x 3.2 x 1.3 in, (160 x 81 x 33 mm)
      Weight: 14.0 oz - 16.0 oz (397 - 454 g)
  • Power
    • PoE (803.2at compliant) DC power input (12 VDC +/-5%, 30W), sealed/ locking connection. Requires optional Intermec 100/240 VAC converter.
    • Communications Interface 10/100 BaseT Ethernet RS-232 and USB for configuration
    • Input Four input(0-40) VDC, 0.25 amp) circuits, powered via PoE or DC input(500 mA, 12 VDC)


Download Intermec IF2 Data Sheet
